Deck Ledger Boards: How Decks Attach to the House and Why That Joint Fails

Key Takeaways

• A deck ledger board carries structural load from the deck into the house framing, and the IRC requires it to support 50 pounds per square foot (10 dead load, 40 live load).
• Ledger connection failure, not joist or post failure, causes the majority of catastrophic deck collapses tracked by deck-safety researchers, usually from missing bolts, nail-only attachment, or water rot behind the board.
• Minimum ledger size is 2x8 nominal pressure-treated lumber, though depth must match your joist size and species per your local code table.
• Half-inch lag screws or through-bolts are required, spaced according to joist span, never nails, and never toenailed.
• Flashing that directs water down and away from the wall sheathing is a code requirement, not an upgrade.
• A freestanding deck built on its own posts and footings is a legitimate alternative when the house wall cannot take the load or when siding conditions make a proper ledger connection difficult.

What a deck ledger board is and the load it carries

A deck ledger board is a pressure-treated 2x member bolted horizontally to a house's rim joist or band board, and it is the structural link that lets deck joists hang from the house instead of resting on their own beam along that edge. Every joist on the house side of the deck attaches to it with a joist hanger.

The ledger does not just hold the deck up. It transfers live load (people, furniture, snow) and dead load (the lumber and decking itself) into the house's floor framing, which then carries that load down through the rim joist, the floor system, and eventually the foundation. The IRC sets the design load at 50 pounds per square foot: 40 live, 10 dead.

A figure that circulates online claims the ledger carries "50% of the deck's load" to the house, with the rest going to the footings. That number has no basis in any code table and varies by design; an engineer sizing footings independently can push most of the gravity load to the deck's own posts, leaving the ledger to handle a smaller share plus lateral (racking) forces. Treat any fixed percentage claim as unreliable.

One condition changes the whole connection: a cantilevered floor. If the house's second story or a bay overhangs the wall below, the rim joist you need to hit may sit behind blocking rather than directly behind the siding, and the cantilevered joists themselves are not always rated to carry ledger loads without added blocking. Confirm what is actually behind the wall before drilling, since fastening into sheathing alone instead of solid framing is a leading cause of pull-out.

Ledger failure is the most common cause of deck collapse

Deck ledger connections fail more often than any other structural component on a deck, which is why the connection gets its own IRC table (R507.9.1.3 in the 2015 and 2018 editions) instead of general fastening rules. Two mechanisms account for nearly all of them: fasteners that never had adequate holding power to begin with, and water that rotted the wood around fasteners that were installed correctly.

The first mechanism shows up as nails or screws that were never rated for the shear and withdrawal loads a ledger sees, sometimes toenailed with no mechanical connector at all. The second is slower and less obvious: water gets behind the ledger through a gap in flashing, the rim joist and ledger both soften over years, and the fasteners lose their grip in wood that no longer resists withdrawal, even though the hardware itself never corroded.

If your ledger is pulling away from the house, check for both at once. A gap opening at the top of the board, dark staining, or a spongy feel when you press a screwdriver into the wood point to rot-driven pull-out rather than a simple loose bolt, and rot means the board needs replacement, not re-tightening.

Deck ledger board size: thickness, depth, and material

The ledger must be at least 2x8 nominal, pressure-treated, and matched in depth to the joists it will carry hangers for; a deck framed with 2x10 joists needs a 2x10 ledger, not a 2x8 with oversized hangers. A 12x16 deck framed with standard 2x10 joists at 16 inches on center needs a 2x10 pressure-treated ledger run the full 16-foot length, spliced if necessary (see below).

Minimum 2x lumber matched to joist depth

The pressure-treated ledger board minimum thickness under the IRC is a full 2-inch nominal member (1.5 inches actual), never a 1x board and never engineered sheet material used flat. The species has to be rated for ground-contact-level exposure to moisture even though the ledger sits above grade, because it sits directly against a wall that traps condensation. Southern yellow pine and Douglas fir-larch, both pressure-treated, are the common choices.

Treated lumber vs LVL: when engineered material is required

Standard pressure-treated dimensional lumber covers most residential ledgers. It handles the spans found in the IRC's prescriptive tables without any engineering beyond those tables. LVL (laminated veneer lumber) enters the picture on longer or heavier decks. A designer reaches for LVL there because the ledger needs to be stronger than sawn lumber can provide, or because the house framing calls for a specific engineered match. LVL used as a ledger must be treated or rated for the exposure. Untreated LVL degrades faster than sawn PT lumber does in the same wet-wall conditions, so the treatment requirement is not optional. If your span, load, or attachment detail falls outside the prescriptive IRC tables, an engineer needs to size the ledger, whatever the material.

Lag screws vs through-bolts vs structural screws for the ledger

The fastener you choose has to match the wall behind the ledger and the load the deck carries; each option below meets code when installed at the correct size and spacing, and the choice mostly comes down to access and the structure behind the sheathing.

Fastener	Typical size	Access needed	Best for
Lag screw	1/2 inch diameter	Drill from ledger face only	Standard framing with solid rim joist behind
Through-bolt	1/2 inch diameter	Access to both sides of the wall	Highest capacity, unfinished basement or crawlspace access
Structural screw (LedgerLok, etc.)	3/8 inch, code-listed	Drill from ledger face only	Faster install, ICC-ESR evaluated as a lag substitute

Half-inch lag screws: capacity and when they qualify

Half-inch lag screws are the baseline fastener in the IRC ledger table and qualify at the spacings the table specifies, provided they penetrate solid framing behind the sheathing by the minimum depth the table requires. Lag screws are not automatically weaker than through-bolts; at equal diameter and equal penetration into solid wood, a properly installed lag screw performs close to a bolt in shear, but a bolt with a washer on both sides resists withdrawal better over decades because it clamps rather than threads into the wood.

Through-bolts for the strongest connection

Through-bolts are required, or strongly preferred, whenever you can get a wrench on the back side of the wall, because a nut and washer on both faces cannot back out or lose grip the way a lag screw threaded into softening wood eventually can. Basements and open crawlspaces make this straightforward; finished interior walls usually do not, which is why lag screws remain code-legal for most retrofits.

Structural screws like LedgerLok: code-listed alternatives

Structural screws such as LedgerLok are code-listed through an ICC-ES evaluation report as substitutes for 1/2-inch lag screws at defined spacings, and most manufacturers publish the exact screw length and spacing table needed to match a given ledger and joist depth. They install faster than lag screws because they need no pilot hole for a wrench, only a driver bit.

Fastener spacing from the IRC deck ledger table

The IRC ledger table ties fastener spacing to joist span, because a longer joist span pulls more load through each fastener and demands a tighter spacing to keep the load per fastener within its rated capacity. The figures below reflect the widely published 2015/2018 IRC Table R507.9.1.3 for a 2x8 or larger PT ledger against a 2x8 or larger band joist, using 1/2-inch lag screws or bolts;.

Joist span	Fastener spacing (on center)
6 ft or less	30 in
6 ft 1 in to 8 ft	23 in
8 ft 1 in to 10 ft	19 in
10 ft 1 in to 12 ft	15 in
12 ft 1 in to 14 ft	13 in
14 ft 1 in to 16 ft	10 in

A deck with 12-foot joists needs fasteners roughly every 15 inches along the full ledger length, in two staggered rows, which is a noticeably tighter pattern than a builder used to the old "two lags every 16 inches, matching the studs" rule of thumb might expect.

Edge, end, and row placement rules for ledger fasteners

Fasteners go in two staggered rows rather than one, which spreads the load across the board's cross-section and reduces the chance of splitting along the grain. Minimum edge distance from the top and bottom of the ledger is commonly set at 2 inches, keeping fasteners well clear of the board's outer fibers where wood is more prone to splitting under load.

End distance follows the same logic: fasteners need to sit a minimum of 2 inches from the ends of the ledger board, since a fastener placed too close to a cut end has almost no wood fiber left to resist withdrawal.

Flashing a ledger board to keep water out of the wall

Flashing is what keeps the ledger connection from failing slowly to rot instead of failing suddenly to an overload, which is why it is required by code rather than treated as optional trim. The sequence below moves from house wall outward, because each layer depends on the one installed before it.

1. Remove siding in the area the ledger will cover, exposing the sheathing or structural wall behind it.
2. Apply a self-adhered waterproof membrane directly to the sheathing, running it 4 to 6 inches above where the top of the ledger will sit and 3 to 4 inches below where the bottom will sit, so the membrane can shed water past the ledger on both edges.
3. Install the ledger board over the membrane, bolted through to solid framing, since the membrane has to sit behind the wood rather than under it to do its job.
4. Apply a second layer of self-adhered membrane over the top edge of the ledger, lapping down over its face so that water draining down the wall cannot get behind the board.
5. Install joist hangers once the ledger and its flashing are in place.
6. Install a metal Z-flashing or drip cap over the top of the ledger, tucked up under the house's remaining siding, so that water sheds off the top of the flashing and drips clear of the ledger and joists below.

Cap flashing and drip edge over the ledger

The piece a homeowner can actually see from below is the metal cap flashing, and its job is to intercept water running down the wall before it reaches the top of the ledger. It needs to extend under the siding above it, not just butt against it, because water finds its way behind a flashing that only touches the siding's face.

Flashing tape vs joist tape: what each one does

Flashing tape and joist tape are both self-adhered membranes, but they solve different problems. Flashing tape goes on the wall sheathing behind the ledger and on top of the ledger itself, sealing the connection between ledger and house. Joist tape covers the top of each individual deck joist to keep water from soaking into end grain and fastener holes; using one in place of the other leaves the wall or the joists unprotected, so a correctly built deck uses both.

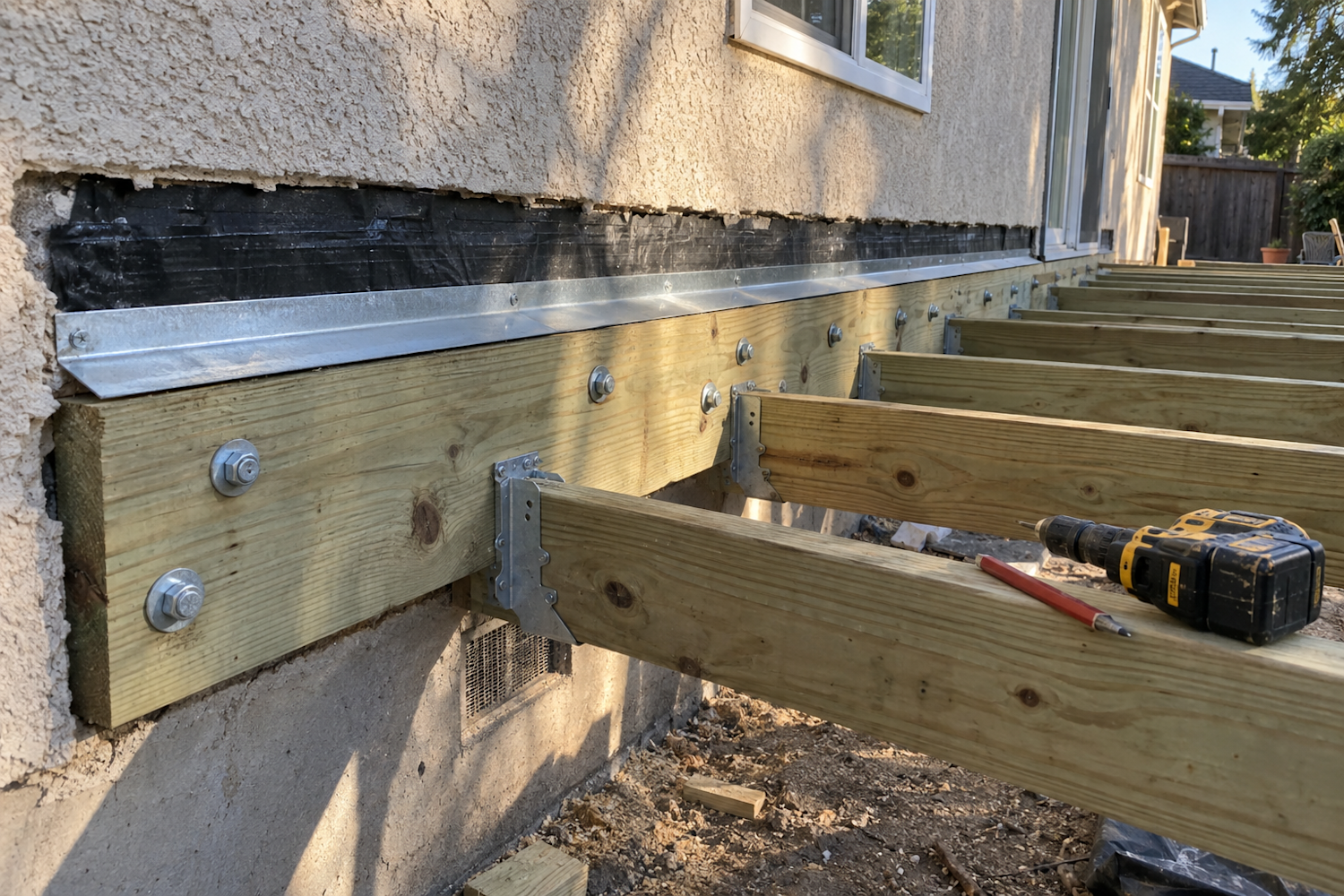

Attaching a ledger board to a stucco house

Stucco cannot be drilled through and left exposed the way wood siding can, because a bolt passing through unsupported stucco has nothing solid to bear against and the stucco itself will crack around the hole over time.

1. Cut and remove a section of stucco (and the paper and lath beneath it) at least as tall as the ledger board plus clearance for flashing above and below.
2. Confirm solid framing, typically the rim joist, sits directly behind the cut-out; add blocking if it does not.
3. Apply self-adhered membrane over the exposed sheathing, extending well above and below the ledger location the same as any other siding type.
4. Install the ledger, bolted or lag-screwed into the framing behind it, never into the stucco itself.
5. Flash the top of the ledger with metal cap flashing, tucked behind the remaining stucco above the cut line.
6. Patch and finish the stucco around the ledger's edges so the wall sheds water the way it did before the cut.

Where a stucco wall shows moisture staining or soft substrate around the old ledger location during a walkthrough, the cut-back needs to extend past the visible damage before any new membrane goes on, since bolting a new ledger over a compromised weather barrier just relocates the same rot problem.

Ledger board on wood siding vs brick veneer

Wood or lap siding gets cut back to expose the sheathing, and the ledger bolts through to the framing behind it the same way it would on any wood-framed wall, which makes wood siding one of the more straightforward substrates to work with. The same cut-back-and-reflash discipline applies to fiber cement and engineered wood siding: the ledger detail has to re-seal the wall's weather barrier without leaving a gap at the cut line, regardless of which of those materials is on the wall.

Brick veneer is different in a structural sense, not just a cosmetic one: brick veneer is a non-structural facing hung an inch or so off the actual wall framing, with an air gap between the two. A ledger bolted through brick veneer has nothing solid to bear against behind the veneer, so the connection can crack the brick and still fail to transfer load. Code prohibits supporting a deck ledger on stone or masonry veneer for this reason; a ledger against a brick-veneer house needs to bypass the veneer with a standoff bracket system engineered for that gap, or the deck needs to be built freestanding instead.

Freestanding deck: when to skip the ledger entirely

A freestanding deck carries its full load on its own posts and footings, with no bolted connection to the house at all, and it is a fully legitimate way to attach a deck to a house physically adjacent to it while imposing zero structural load on the house's framing.

Freestanding construction is the right call when the house wall is brick or stone veneer, when the framing behind the wall cannot be confirmed or reinforced, or when an engineer determines the existing structure cannot take the added load without costly reinforcement. Stability comes from the posts and footings alone; adjacent posts near the house are typically set close enough, and braced enough laterally, to keep the deck from racking independent of the wall it sits next to.

Sacramento County permit and inspection for the ledger connection

Most deck construction in Sacramento County requires a building permit. The ledger connection is one of the specific items an inspector checks before the deck can be closed in or used. Whether your project needs a permit depends on two things: the deck's height above grade, and whether it attaches to the house at all.

Sacramento County permit fees for a deck project vary by project valuation and scope. The inspector checks several things at once. Expect a review of ledger fastener type, size, and spacing against the approved plan. Expect the flashing to be checked, both over and behind the ledger. Expect the inspector to confirm solid framing behind every fastener location, sometimes by removing a section of siding so the framing can be viewed directly. Expect joist hangers to be checked for correct nailing, using the fastener type the hanger manufacturer specifies.

GVD Renovations builds decks across the Sacramento Metro area with one project manager accountable from the permit through the county inspection, including how the ledger is installed and flashed.

Sacramento Valley heat and thermal cycling on ledger fasteners

Sacramento's summers regularly reach triple digits, and that heat drives repeated expansion and contraction in both the ledger board and the house framing behind it as the wood dries during the day and picks up moisture again overnight. Over years, that cycling can work lag screws slightly loose in their pilot holes, which is one reason a ledger inspection before summer catches problems a mid-winter check would miss, since loosened fasteners show up most clearly after a hot, dry stretch.

The fix is not a different fastener so much as a verification habit: check torque on lag screws and bolt tightness on through-bolts every few years, and treat any fastener that turns with hand pressure as a sign the connection needs a closer look rather than a simple retightening.

Inspecting an existing ledger board for rot and pull-out

A deck ledger inspection before the first hot weekend of the season catches most problems while they are still cheap to fix. Look for these signs specifically:

• A visible gap between the ledger and the house wall, especially at the top edge, which points to fasteners that have already started to pull out.
• Soft or spongy wood when probed with a screwdriver, particularly where deck boards butt together over the ledger, since that joint traps water first.
• Missing or damaged flashing, or no flashing cap visible at all when viewed from underneath the deck.
• Rust staining or corrosion around fastener heads, which signals long-term water contact even if the wood around it still looks solid.
• Nails instead of lag screws, bolts, or code-listed structural screws; nail-only ledger attachment is a defect that needs correction regardless of the deck's apparent condition otherwise.

Any one of these findings on its own warrants a closer look; two or more together mean the ledger should come off and be inspected, and likely replaced, before the deck sees another season of use. Homeowners deciding between repairing a pulling ledger and rebuilding can get a fixed-price written scope from GVD Renovations, which holds a 4.9/5 rating across 921+ reviews and California license 989637.

Step-by-step: installing a new deck ledger board

Building the frame that attaches your deck to the house follows a fixed order, because each step depends on the one before it being done correctly.

1. Mark, cut, and remove siding in the ledger location, whatever the siding material.
2. Confirm solid framing behind the cut-out and add blocking if the rim joist is not directly accessible, which is common on cantilevered floor sections.
3. Apply self-adhered membrane to the exposed sheathing, extending well past where the ledger's top and bottom edges will land.
4. Cut the ledger to length and lay out fastener locations per the spacing table for your joist span, in two staggered rows with correct edge and end distances.
5. Drill and install the ledger with lag screws, through-bolts, or code-listed structural screws, driven into solid framing at every marked location.
6. Apply a second membrane layer over the top of the ledger.
7. Install joist hangers at each joist location marked on the ledger.
8. Install metal cap flashing over the top of the ledger, tucked under the remaining siding above.
9. Patch or replace siding around the ledger so the wall sheds water the way it did before construction started.

A ledger installed out of this order, siding patched before flashing goes in, for instance, tends to trap water behind the patch rather than shed it, which defeats the purpose of every step that came before it.

If your ledger inspection turned up rot, pull-out, or a fastener pattern that does not match current code, or you are planning a new deck anywhere from Sacramento to the Bay Area, GVD Renovations can walk the site, check what is actually behind your wall, and handle the permitting and construction in one scope of work. Reach out for a free in-home consultation to get that assessment started.
